PERFORMANCE ELEVATED

500R

4.6L V8 Supercharged 500R

The New Benchmark

Experience elevated power and technology created exclusively for owners of the fastest luxury sport boats. Producing 500 supercharged horsepower, the Mercury Racing V8 500R introduces a host of new components in the

powerhead, cooling system, midsection, gearcase and steering system, each engineered to harness the raw power produced by this engine and to meet the challenging demands of Wide Open performance boating.

THE NEW STANDARD OF PERFORMANCE

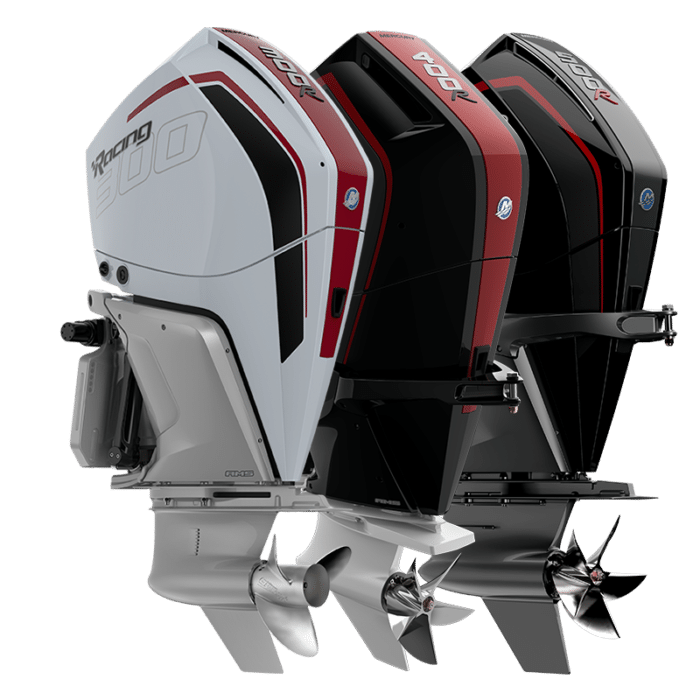

VERADO 500R, 450R, 400R, 300R & 250R

Stack your transom with unmatched power density and stack the deck in your favor. Deep-breathing, high-winding, rugged and reliable. Mercury Racing R-Series outboard motors employ exclusive advanced design elements and Mercury Racing technology to go quicker, faster and further. Dial in your desired performance with a broad range of horsepower rating and gearcase options that are simply unmatched in the industry.

VIEW IN AUGMENTED REALITY

Powerhead

500HP PURE. MUSCLE.

STOUT POWERHEAD

Built from the inside out for rugged performance. Our new 4.6L V8 powerhead features upgraded components support to a scaled-up power output and deliver reliability you can count on.

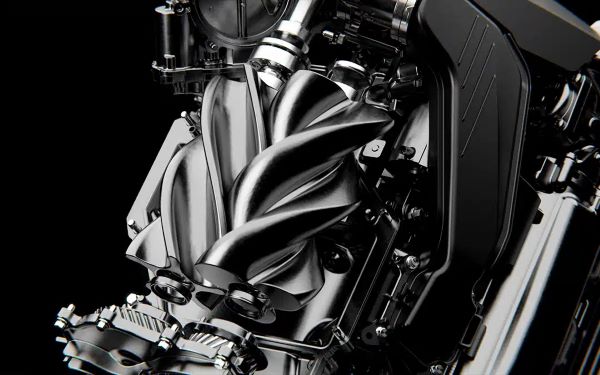

BIGGER BOOST

Our power prescription calls for a 26% increase in supercharger boost pressure. Air flow is optimized with a larger intake attenuator and a new 92mm throttle body.

HUMIDITY COMPENSATION TECHNOLOGY

More power in every environment. For the first time in any marine engine, a new sensor measures the humidity level of the intake airflow to maintain the most aggressive calibration and optimize performance under virtually all conditions.

Midsection

STIFFER. STRONGER.

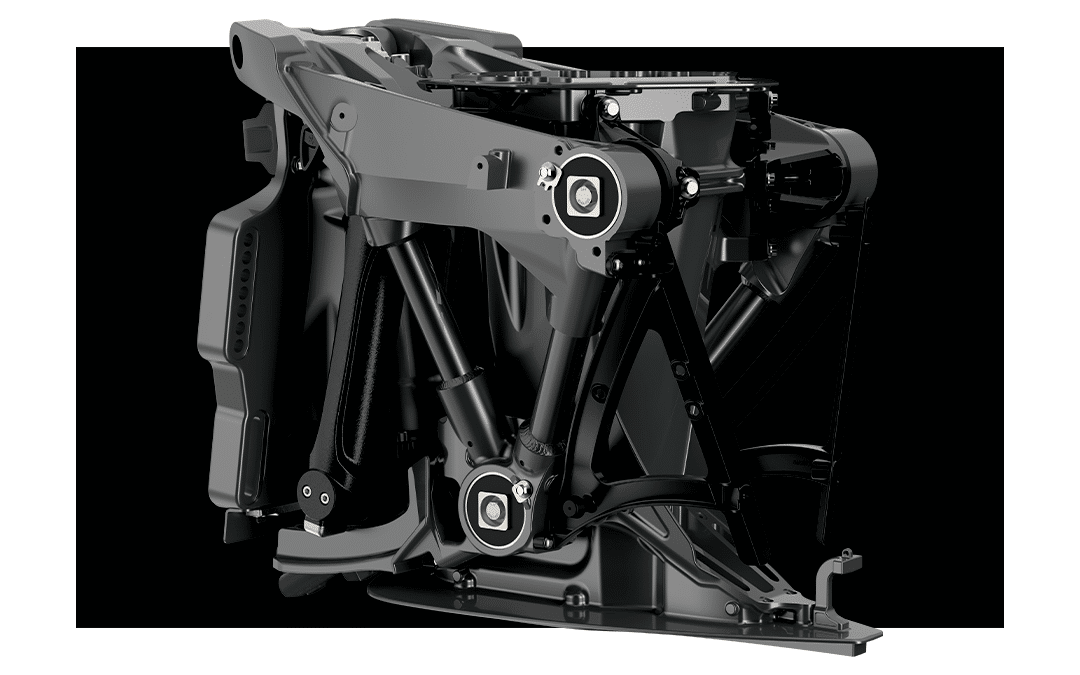

ADVANCED RACING CORE (ARC) MIDSECTION

The new Advanced Racing Core (ARC) midsection is engineered to upgrade durability and performance.

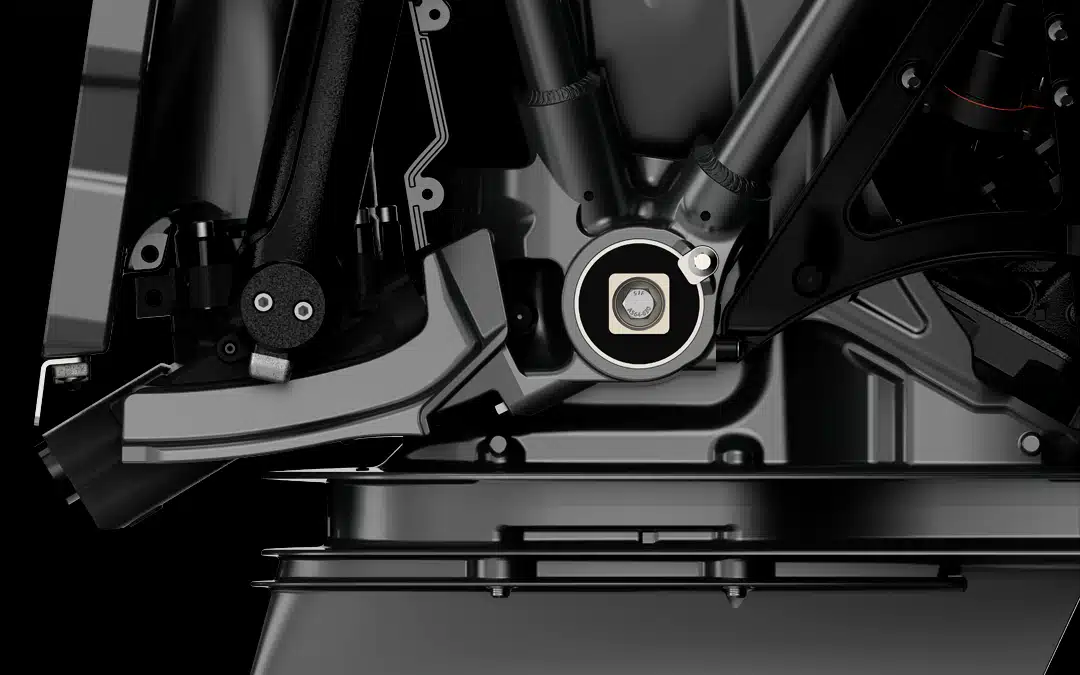

CORE STRENGTH

Mercury Racing has engineered the Advanced Racing Core (ARC) midsection to compliment the extreme thrust and high-speed capability of the 500R outboard. This is the strongest, stiffest and most-durable midsection ever created by Mercury Racing, and it is exclusive to the 500R outboard.

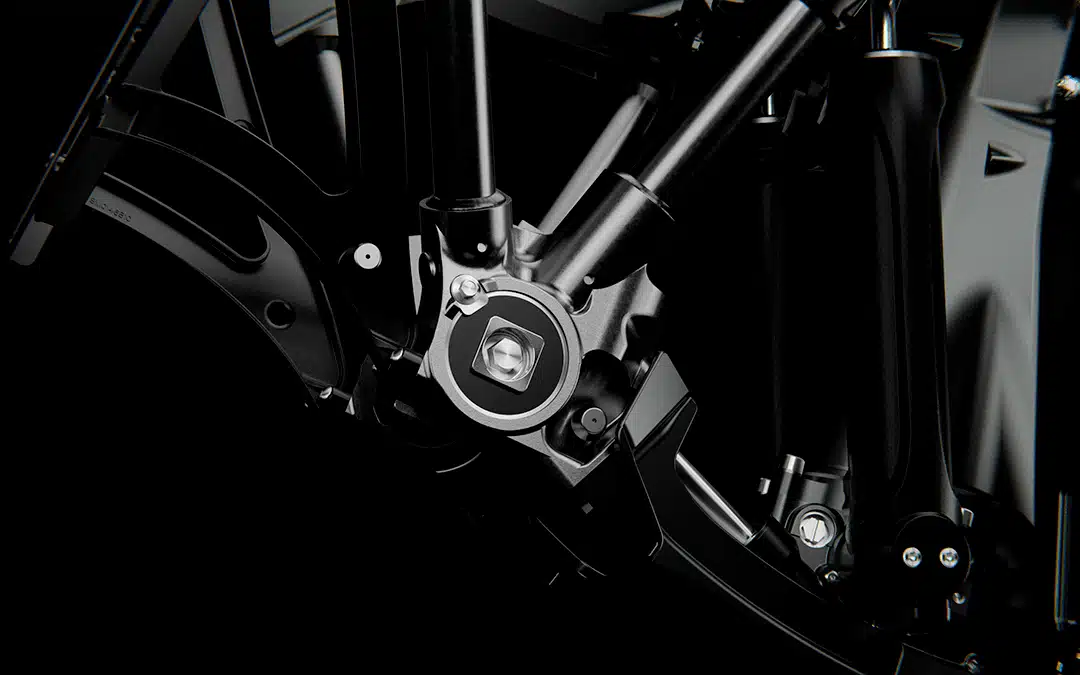

TRIMMED TO PERFECTION

Precise drive trim control is critical to realizing the high-speed potential of any performance boat. Mercury Racing leverages decades of experience in the heat of competition to engineer an upgraded trim and steering system for the 500R outboard that delivers unmatched precision.

Gearcase

SPEED. RATED.

MERCURY RACING R-DRIVE

The new level of outboard power demands all-new gear case options. Introducing the exclusive Mercury Racing R-Drive, available in R-Drive and R-Drive Sport versions, this high-performance gear case is designed specifically for the speed and power of the 500R outboard in submerged, semi-surfacing and full surfacing applications.

DESIGNED FOR HIGH SPEED

THE SHAPE OF SPEED

A crescent leading edge and long aspect 5.9-inch torpedo are hydrodynamically tuned for high speeds in any application. Equipped with 1.60:1 gear ratio and designed to turn propellers up to 17 inches in diameter.

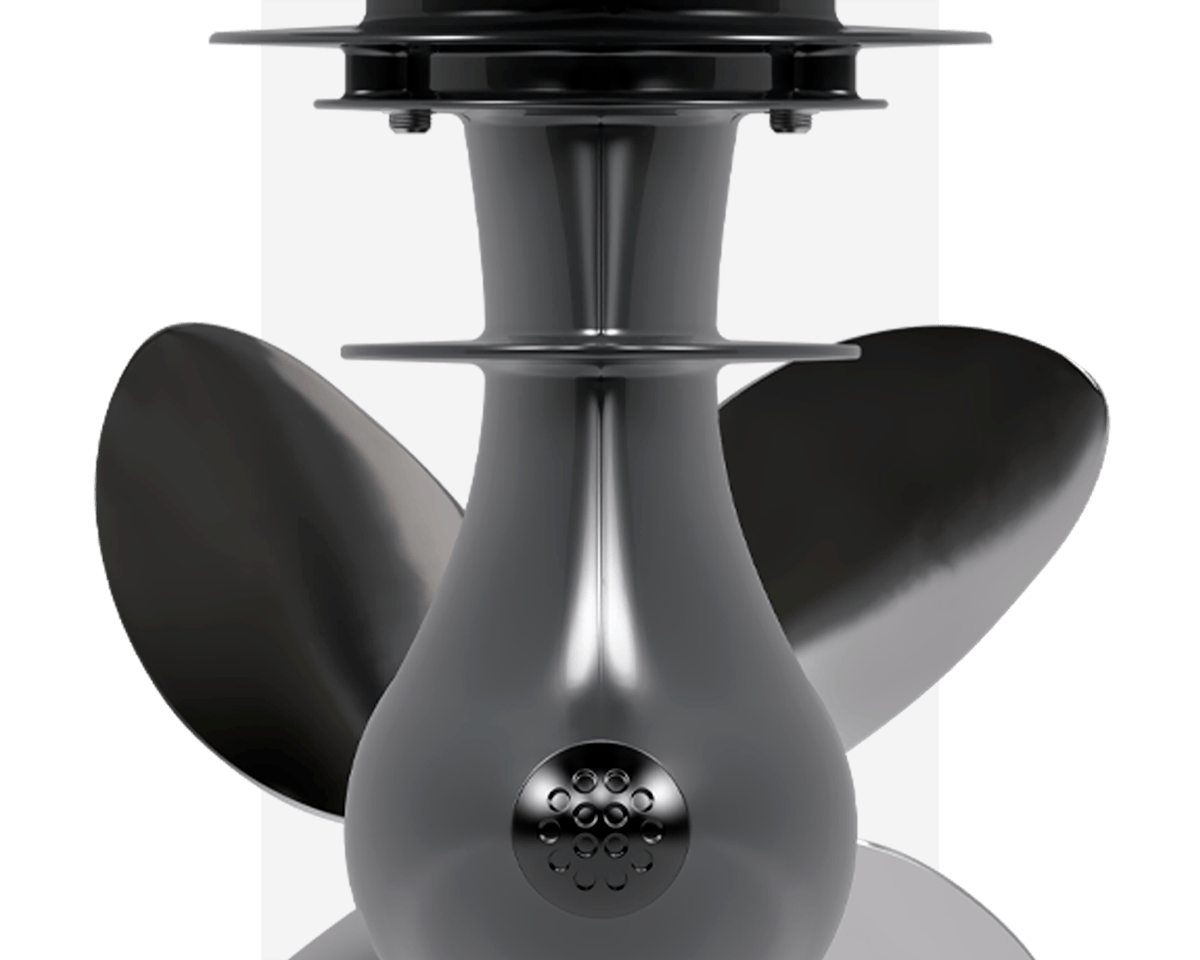

REDUCED DRAG

A new intermediate spray plate reduces drag in submerged and transition applications.

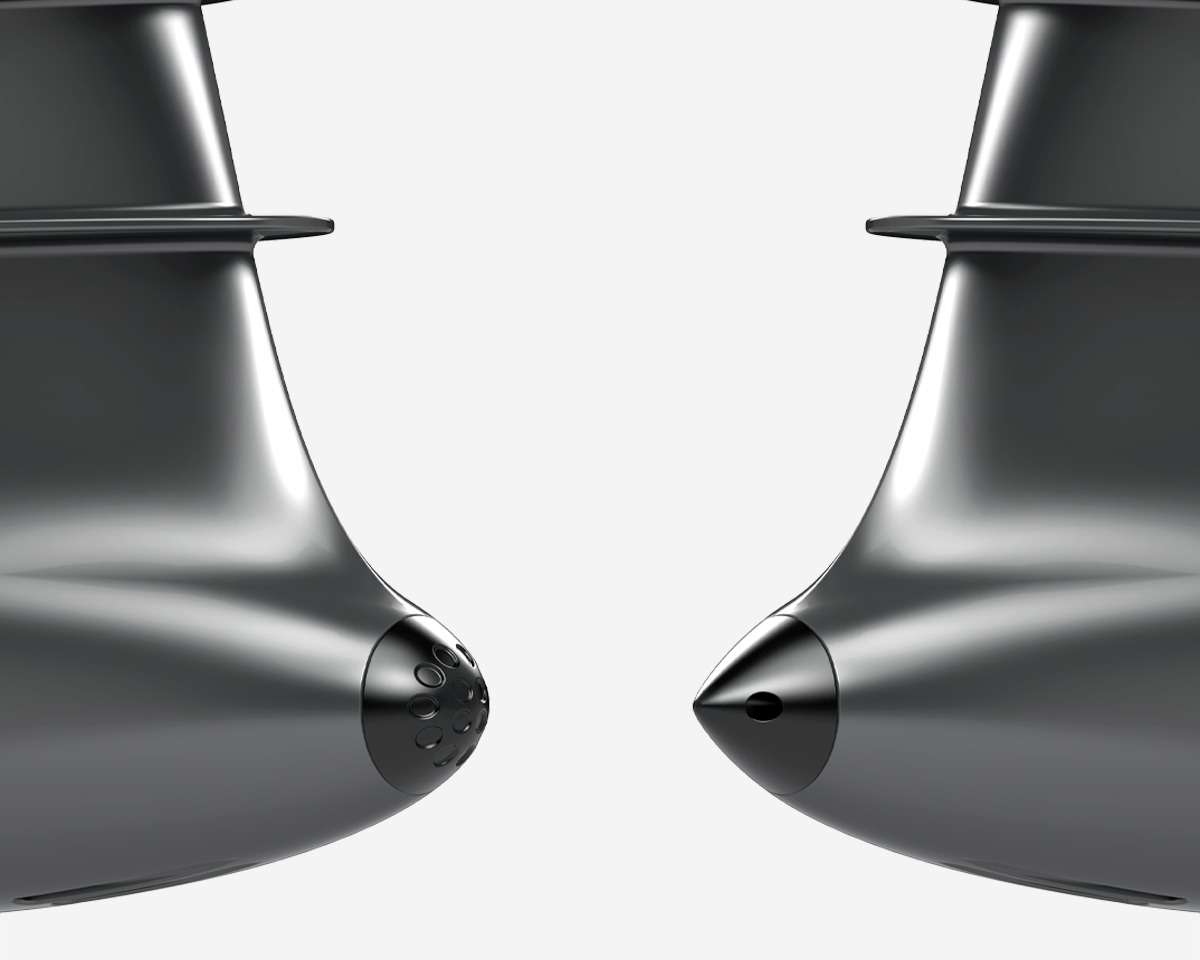

OPTIMIZE FLOW

Low water pickups plus a new adjustable nose cap inlet system optimize water flow for submerged, transition and high-speed surfacing applications.

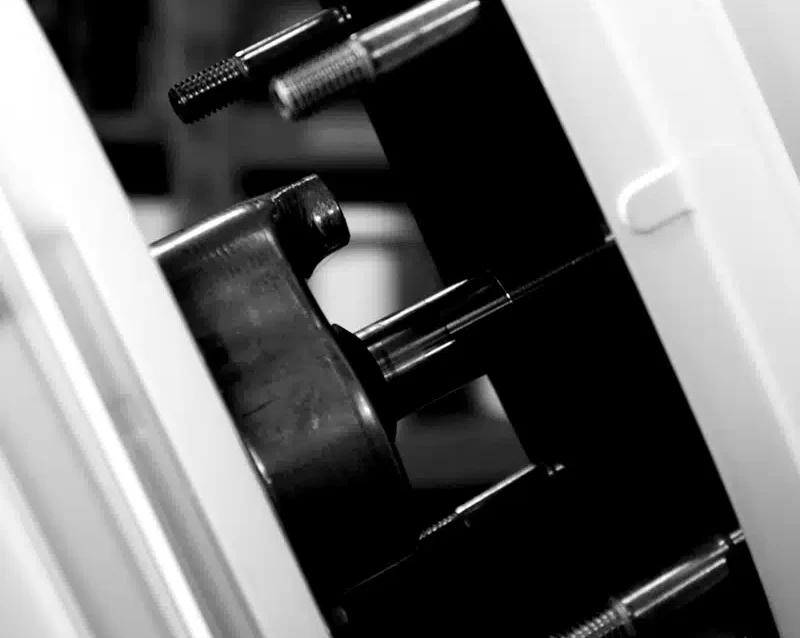

PUMPED UP

To support a generous flow of cooling water to the powerhead water pump capacity is increased by 57 percent.

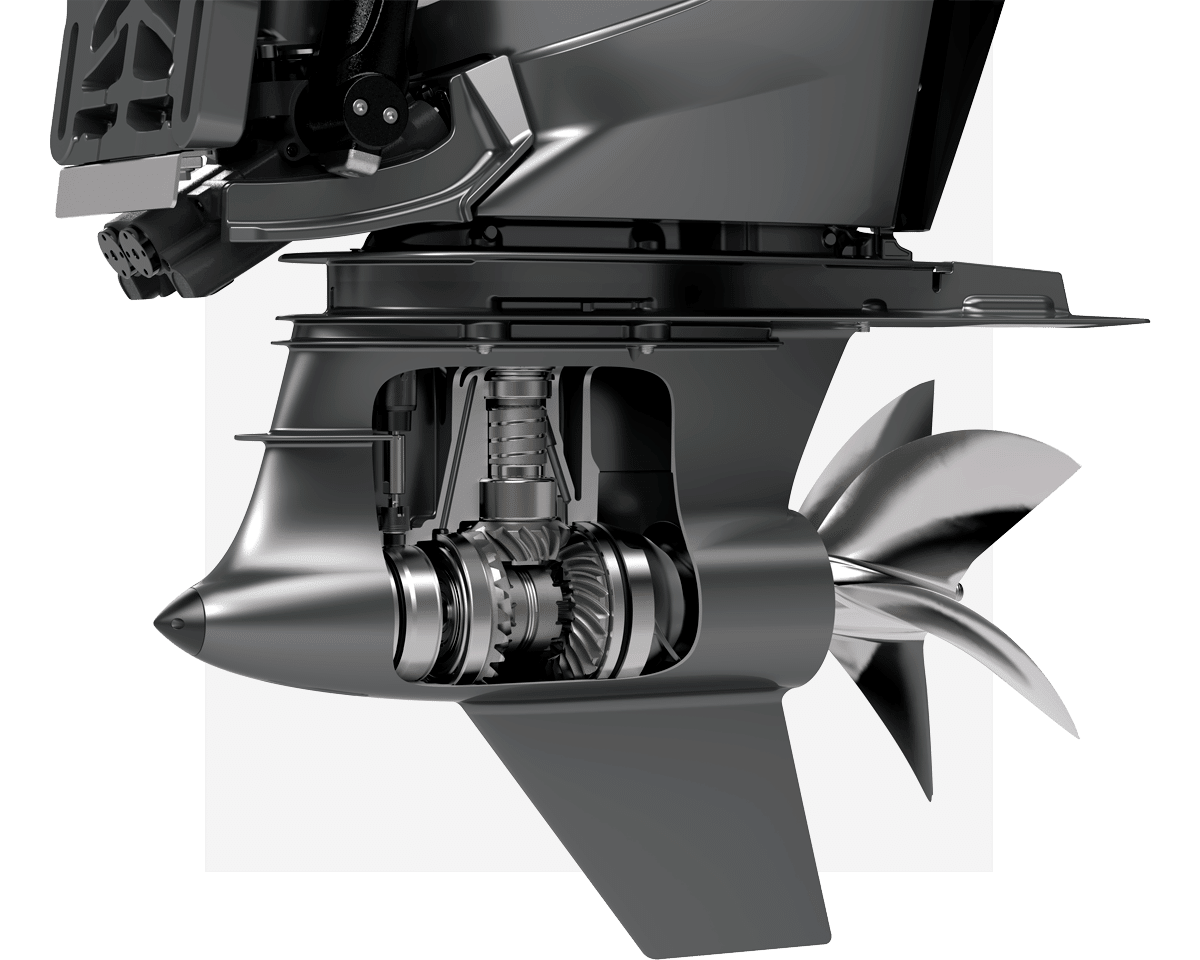

STRONGER INSIDE

A rugged new 1-inch diameter driveshaft and 1.5-inch diameter propshaft are designed to handle the torque and thrust of 500 horsepower.

R-DRIVE

The R-Drive gearcase features a standard skeg length with a very efficient parabolic cross-section shape with left- or right-hand camber to balance steering force with standard and counter rotation props. Designed to perform in submerged and transition applications on boats capable of speeds between 85 and 100mph.

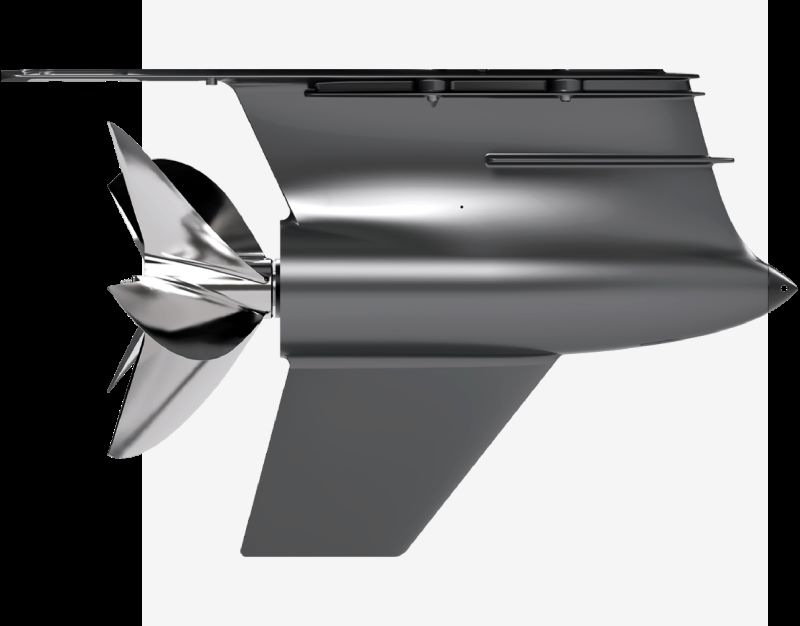

R-DRIVE SPORT

The R-Drive Sport is optimized for surfacing applications at speeds beyond 100 mph. Its longer skeg maintains steering control while operating fully surfaced at the high mounting positions desirable for many of the fastest hulls.

FACTS & FIGURES

Full Throttle RPM

6000

6600

RATED HP

500 CYLINDERS

V8

DISPLACEMENT

4.6L

Horsepower (HP/KW)	500 / 372
WOT RPM	6000-6600
Engine Type	V8 (64 Degree) with 32-Valve Dual Overhead Cam (DOHC)
Displacement (Liter/CID)	4.6 / 281
Induction System	Supercharged with Charge Air Cooling and Electronic Boost Control
Fuel Requirements	Unleaded Regular 89 Octane Minimum (R+M/2) or 95 RON
Charging (AMP/WATT)	115 / 1449
Throttle & Shift	Digital Throttle & Shift (DTS)
Midsection	Advanced Racing Core (ARC)
Integrated Rear Tie Bar Bracket	Available
Shaft Lengths (Inch)	20, 25, 30, & 35
Gearcase	R-Drive, R-Drive Sport
Gearcase Ratio	1.60:1
Dry Weight (LB/KG)	726lbs
Warranty	3-Year Limited

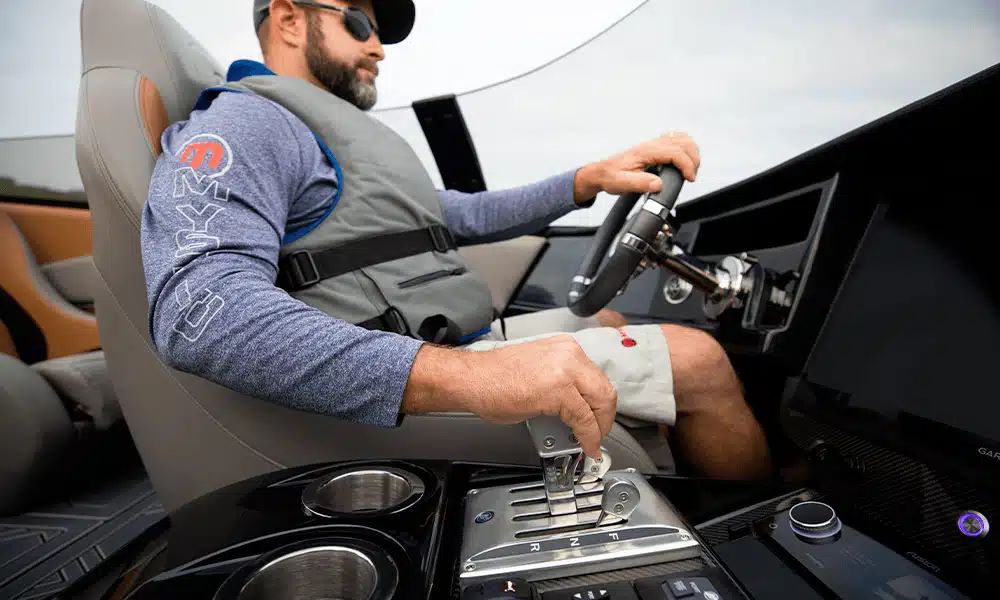

DIGITAL THROTTLE & SHIFT (DTS)

The precision of Digital Throttle and Shift (DTS) with available Mercury Racing Digital Zero Effort controls eliminates cable maintenance and delivers smooth shifting with instant throttle response.

ADAPTIVE SPEED CONTROL

Adaptive Speed Control maintains engine RPM as load changes due to sea conditions or turning maneuvers to maintain boat authority with less control input.

SMARTCRAFT TECHNOLOGIES

The 500R model supports the full suite of Mercury SmartCraft technologies, including the Engine Guardian monitor system. Stream engine and performance data to a Mercury VesselView multi-function display or to many other multi-function displays.

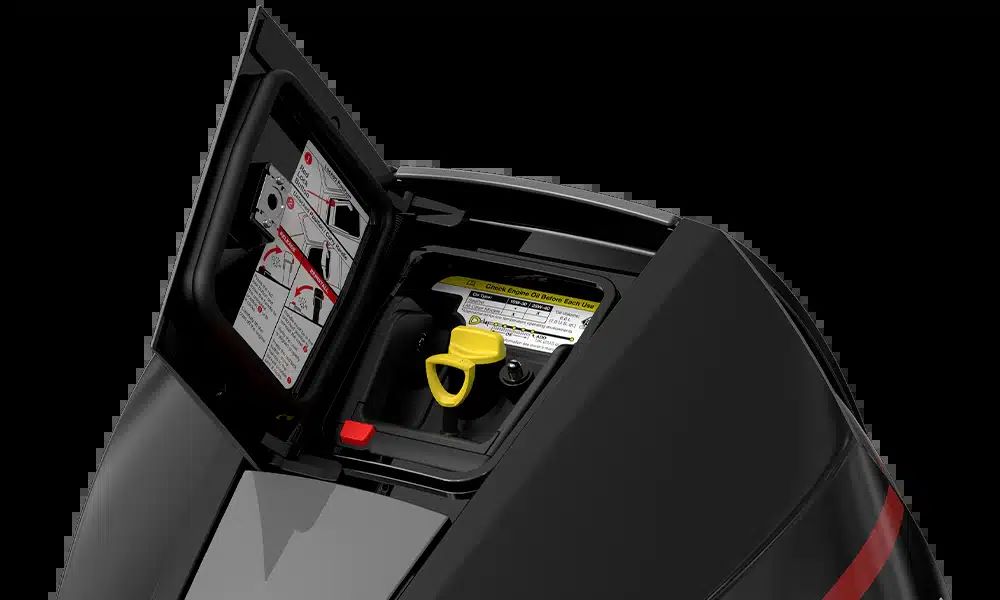

TOP COWL SERVICE DOOR

Pop open the industry-exclusive Top Cowl Service Door for easy access to the oil dipstick and fill without removing the cowl.
